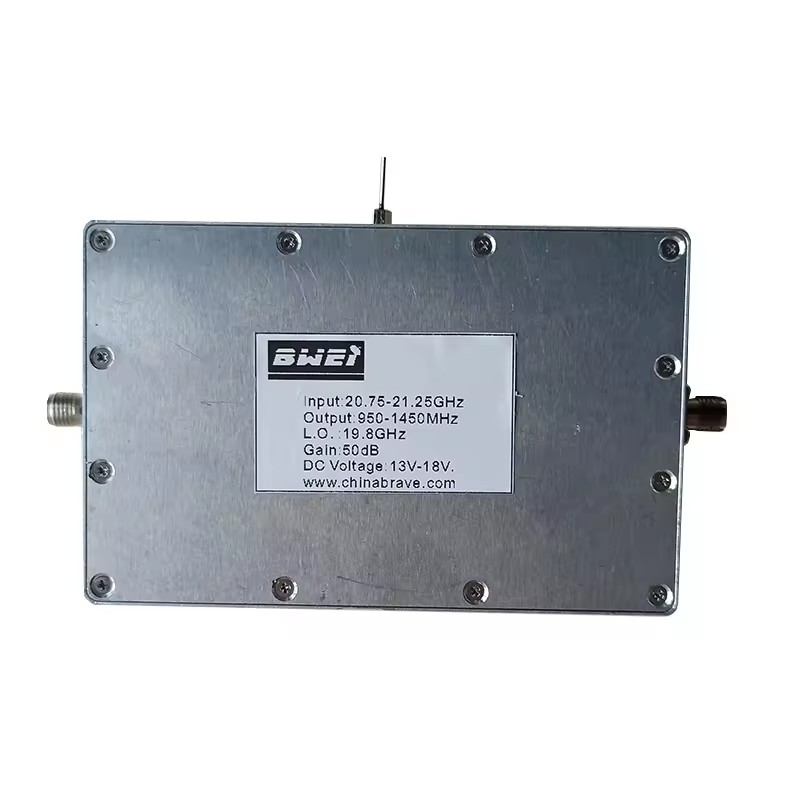

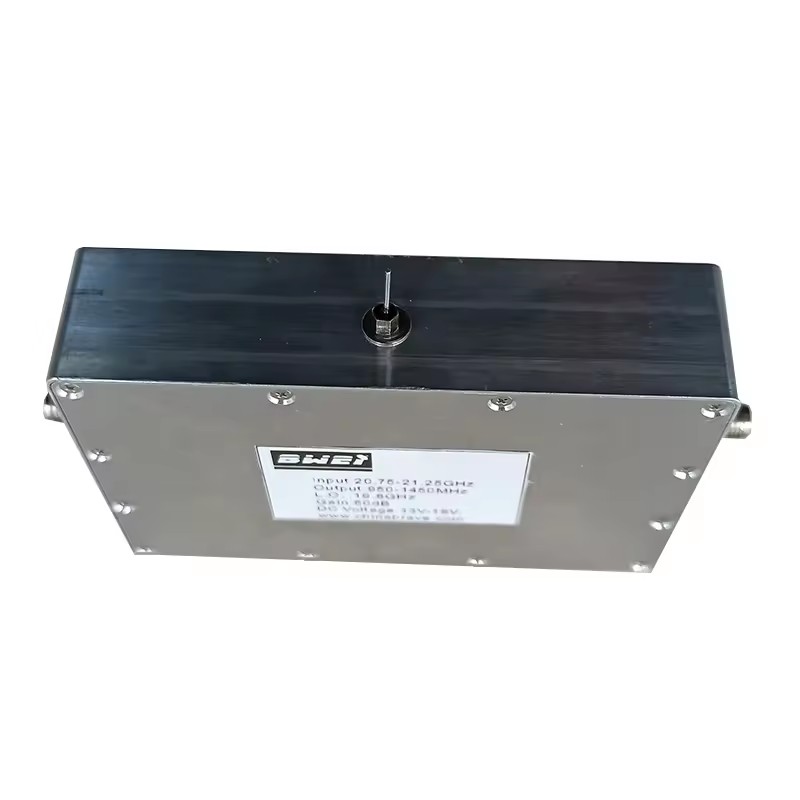

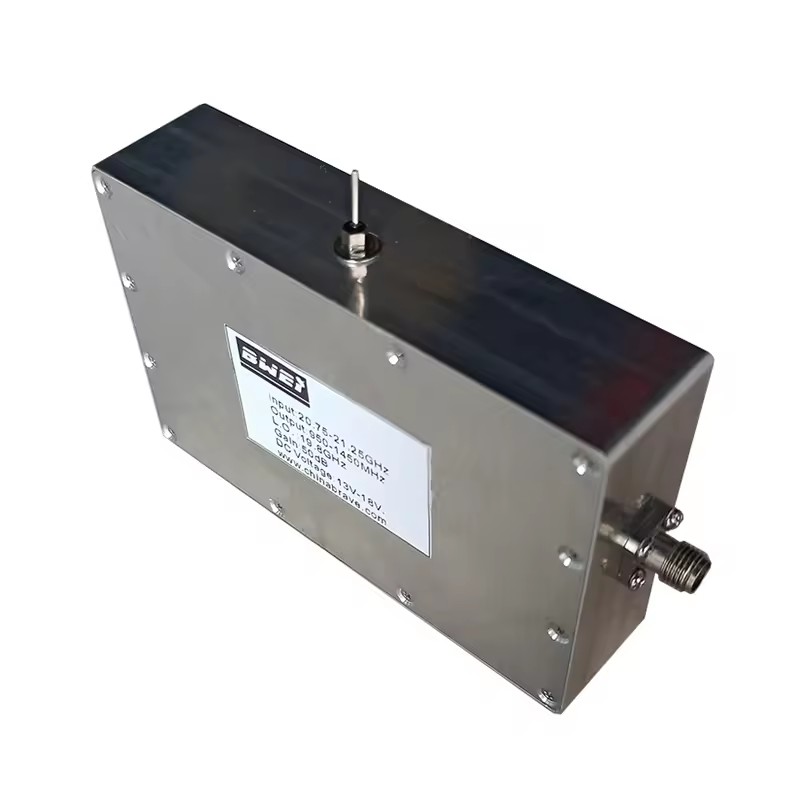

Ka band Lnbf 20.75-21.25GHz China customized 19.8GHz

9.8g Ka band LNBF, new price F-type 75 ohms

Visual stations, communication product distributors, and satellite enthusiasts can cheer. Our product adopts high-end technology

The highlights are constantly updated, bringing you unexpected experiences.

Product description

Our LNB (Low Noise Amplifier) is graded based on satellite model and noise temperature, aiming to achieve a perfect balance between performance requirements and cost.

*Verified reliability can reduce lifecycle costs

*Excellent DRO LO stability, capable of controlling receiver drift and using lower bit rates or narrower spatial segments

*Excellent phase noise can reduce the carrier noise margin and improve BER

Features:

The industry's best LO (local oscillator) stability

High performance for any application

Excellent availability and short delivery time

Easy installation, convenient trial operation

High quality weather protection

Specifications:

Input frequency 20.75-21.25 GHz

Luo frequency 19.8 GHz

Output frequency 950 to 1450 MHz

Noise temperature: up to 1.6 decibels

Stability of Luo (excluding temperature exceeding) ± 25 kHz

Phase noise (SSB)

@1kHz -75dB/Hz

@10kHz -80dB/Hz

@100kHz-95 dB/Hz

Gain 60 dB (typical value) minimum 55 dB @ full frequency band

Output P1dB+5 dBm minimum value

DC power supply+12V to+24V DC

Current 400mAh

Input (waterproof) WR-42 waveguide

Output (waterproof) F connector (75 ohms)

Working temperature -30 ℃~+60 ℃
