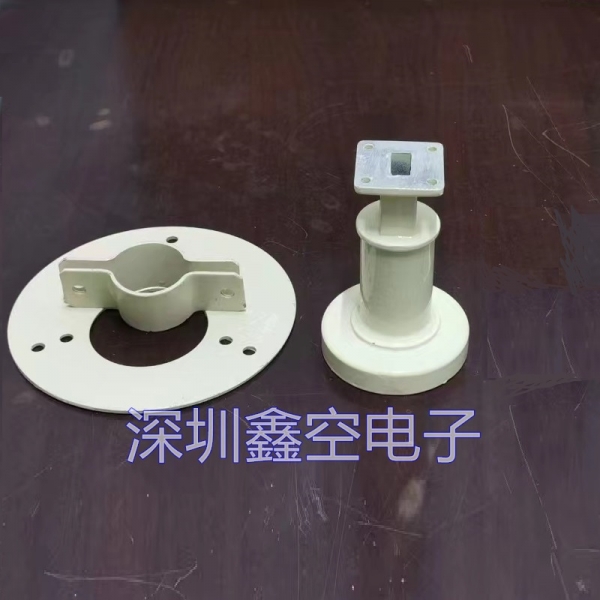

Product introduction: In engineering applications or remote extreme reception projects, large aperture feedforward antennas such as Huada 2.4m and 1.8m are often equipped with Ku band split high frequency heads to receive satellite TV programs in the KU band. A central focused feed source becomes an essential component,
Product indicators:
Freqency range: 10.7GHz~12.75GHz
Feed source interface: WR75
The KU feed source can match all the split LNB high-frequency heads on the market, Cyberset KU high-frequency heads, and Norsat split KU high-frequency heads perfectly
The feed plate is used to compensate for poor focusing of the forward feed antenna
The function of the feed plate is to reflect the signal that missed the signal port of the high-frequency head back to the antenna reflection surface (pot surface), and the signal will be focused again after passing through the antenna reflection surface. The focus will be smaller, making it easier to enter the signal port of the high-frequency head, thereby improving the reception performance of the antenna feed system signal. Due to factors such as antenna accuracy, focus shape, high-frequency head performance, and the area, accuracy, and installation position of the feed plate itself, the signal reception performance of the antenna with and without the feed plate installed will be improved by about 2% to 20%, which needs to be tried.
