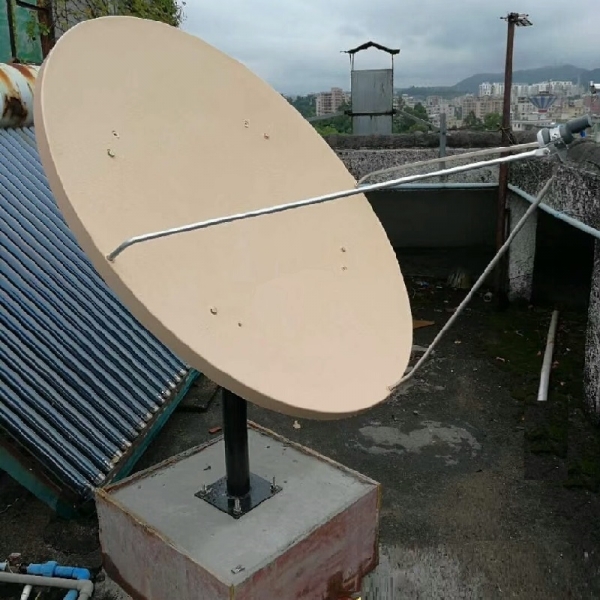

FRP Satellite Receiving Antenna KU 1.2m SMC Satellite Dish Antenna

The Huada 1.2-meter fiberglass antenna is a type of antenna specifically designed for a specific frequency range. Here are some basic information about this antenna:

1. Materials:

Huada fiberglass antenna is a composite material composed of glass fiber and resin. It has high strength and corrosion resistance, making it very suitable for manufacturing antennas.

2. Design:

*1.2 meters is the standard length for this type of antenna and may be suitable for various applications, such as radio communication, radar, or certain specific types of radio antennas.

*The shape and structure of the antenna will vary depending on its application and design requirements.

3. Performance:

*Fiberglass antennas may have high gain and good directionality, depending on their design and manufacturing.

*It may also have a longer service life because its material has strong resistance to environmental factors such as wind, rain, snow, etc.

4. Manufacturing and Testing:

*During the manufacturing process, glass fiber reinforced plastics or other related technologies may be used.

*After completion, a series of tests will be conducted on the antenna to ensure its performance meets the design requirements.

5. Application:

*The Huada 1.2-meter fiberglass antenna may be used in various occasions, such as mobile communication, satellite communication, radio control model aircraft, ship communication, etc.

Please note that the above information is based on general knowledge and understanding of antenna technology. Specific design, performance, and application details may require consulting relevant professional materials or contacting manufacturers directly to obtain accurate information.

Electrical characteristics of Huada antenna

Working frequency (ku Band) 10.75-12.95GHz

Center frequency gain: ku Band: 41.7dB

3dB wave width: ku Band: 1.4 °

Side lobe: -23dB

Polarization isolation degree:>30dB

Voltage standing wave ratio: ＜ 1.2:1

Noise temperature: 43 ° K

Feed source connector: ku Band WR75

Mechanical characteristics of Huada antenna:

Reflective surface material: Single glass fiber reinforced unsaturated polyester sheet-like molding compound (SMC)

Antenna type: biased feed

Bias angle: 22.3 °

Installation form of feed source: single arm support/three pole support

Elevation adjustment range: 0-90 degrees, sustainable fine tuning

Azimuth adjustment range 0-360 degrees continuously adjustable

Transportation specification: 40KG

Environmental adaptability:

Wind load:

Normal operation: 20mps

Preservation: 45mps

Adapt to temperature

Normal operation: -40~60 ℃

Preservation: -45~70 ℃

Atmospheric conditions: suitable for humid, high salinity, and polluted climate environments

Product Description

Main features:

The SMC reflective surface is molded with high precision, good consistency, and does not deform; Low density, high specific gravity, as strong as steel and as light as aluminum, with a compressive performance 12 times that of aluminum; Multiple reflective surfaces combined, with good interchangeability; Corrosion resistance, aging resistance, service life up to 15-20 years; Specially designed feed sources and reflective surfaces perfectly match to achieve high efficiency in transmission and reception; The electric polar coordinate tracking structure can meet the requirements of full orbit satellite coverage; Easy to install and adjust. The reflective orange peel surface design is rain resistant and reduces damage to the high-frequency converter.
