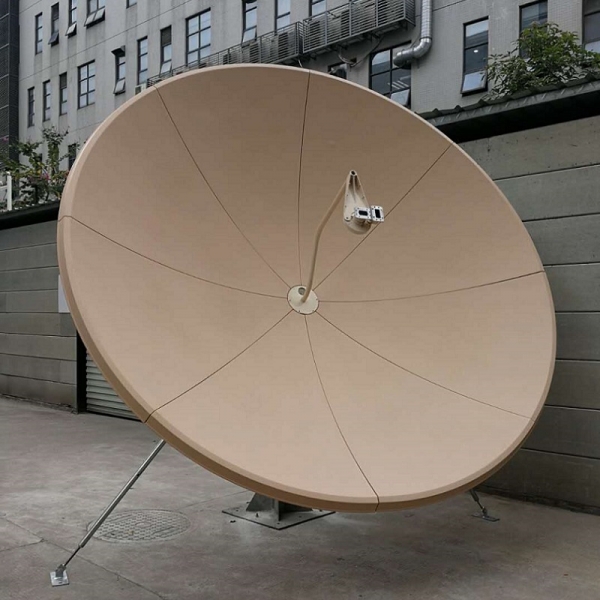

3m C-Band Carbon Fiber Precision molded reflector satellite dish WITH

The SMC reflector of FRP antenna is molded, with high accuracy, good consistency and no deformation;

Low density, high specific gravity, strong as steel, light as aluminum, pressure resistance is 12 times that of aluminum;

Reflection surface of multiple pieces of combination, good interchangeability;

Corrosion resistance, aging resistance, life span up to 15-20 years;

The specially designed feed and the reflection surface perfectly match, so that the sending and receiving reaches the highest efficiency;

Electric polar coordinate tracking structure, can meet the full orbit satellite coverage; installation and adjustment is simple and easy.

Reflective surface orange peel surface is designed to prevent rain and decay and reduce damage to high frequency head.

Technical parameters: 3.0m

electrical character

Operating frequency: C-Band:3.7-4.2GHZ

Ku-Band:10.75-12.95GHZ

Center frequency gain: C-Band: 39.7 dB

Ku-Band:48.8 dB

3dB wavelength: C-Band: 1.7°

Ku-Band:0.6°

First lateral flap: -20dB

Polarization isolation:> 30dB

Voltage-standing wave ratio: <1.3:1

Noise temperature (at 30 elevation): C-Band: 30 K

Ku-Band:26 ºK

Feeder interface: C-Band: CPR229

Ku-Band:WR75

mechanical properties

Reflector material: 8 glass fiber reinforced unsaturated polyester sheet molded plastic (SMC)

Antenna form: central feed

Feeder installation form: single-arm support / three-rod support

Angine adjustment range: 0-90 sustainable fine adjustment

Azimuth adjustment range: 0-360 continuously adjustable

Transportation specification: 220k

environmental suitability

Wind load: normal operation: 22mps

Preservation: 45mps

Adapt temperature: normal operation: -40℃ ~ 60℃

Preservation: -45℃ ~ 70℃

Atmospheric conditions: suitable for humid, large salinity, polluted climate environment
