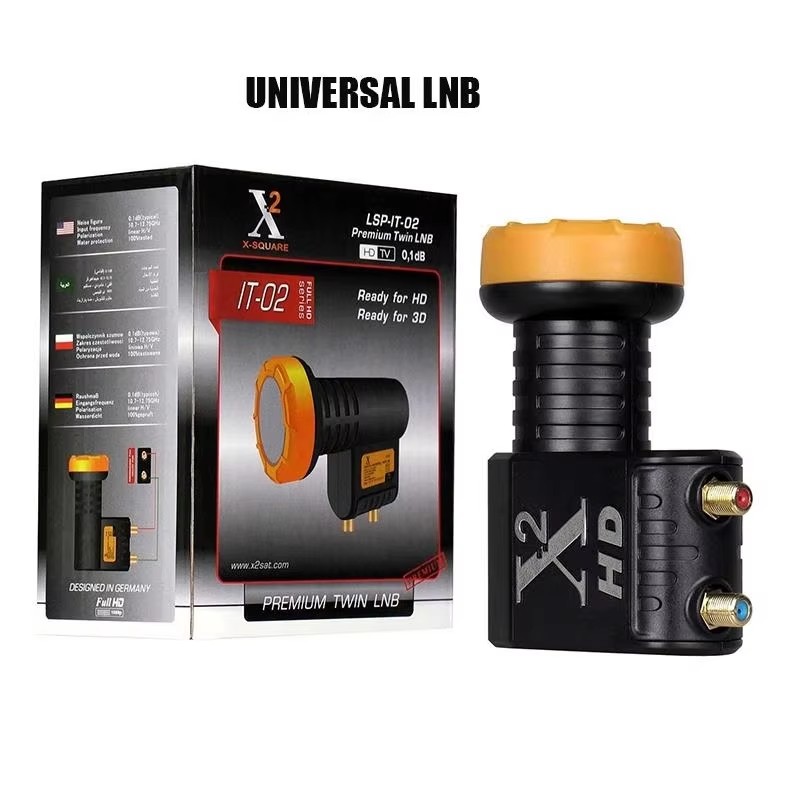

Made especially for Americas and USA markets ,
C) Built in Golden F-Connector for Strong Connectivity ,
D) New Design and New Cap Technology for the best protection from weather and waterproof ,
Technical Details : Input Frequency Range
LOW Band:10.7~11.7GHz
High Band:11.7~12.75GHz Output Frequency Range
Low Band: 950 - 2050MHz
High Band: 1100 - 2150MHz
Input VSWR 2.5:1
Output VSWR 2.5:1
L.O. Frequency
Low Band 9.75GHz
High Band 10.6GHz
L.O. Stability ±2MHz @ (-40c~70c) L.O. Phase Noise -70dBc/Hz (1KHz Offset) -90dBc/Hz (10KHz Offset) -110dBc/Hz (100KHz Offset) Conversion Gain 60dB (TYP)
Gain Flatness ±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure ±0.1dB (Typ) Image Rejection 50dB(Typ) Output Power +5dB (Min) (at 1dB gain compression) Cross Polarization Discrimination 23dB(Min)
DC SUPPLY VOLTAGE 11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT 130mA (MAX)
LOW/HIGH BAND SWITCHING
Low Band: 0Hz HIGH BAND: 22KHz±4KHz
Output Connector 75Ω "F" type female
RELATIVE HUMIDITY 0%~95%
Operating Temperature -45 °C to +70 °C
