General Description

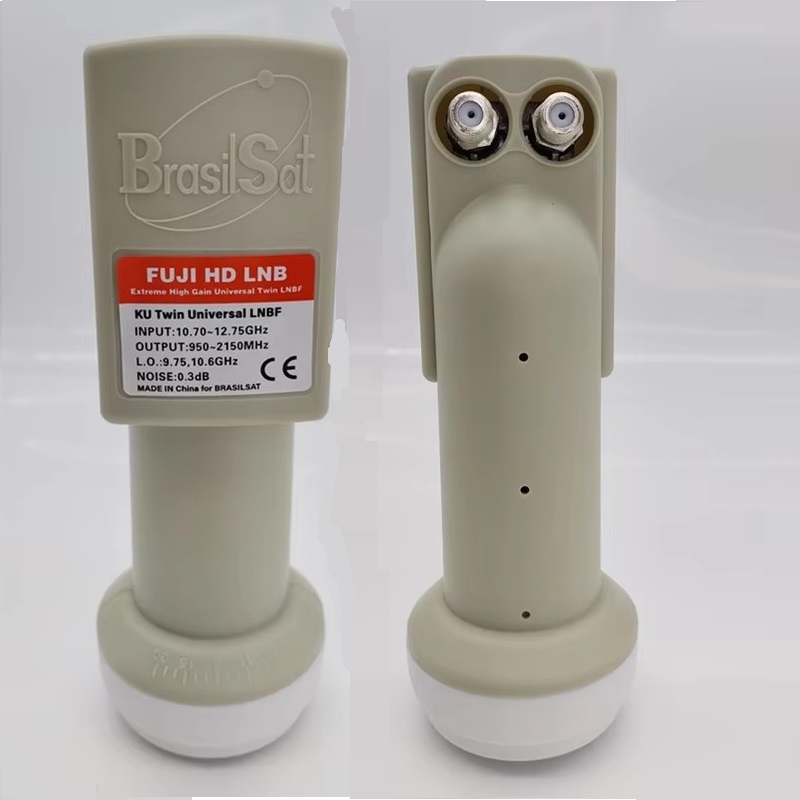

The Low Noise Block down-converter is used in combinatioth an antenna for Ku band,
and this converter can receive both Horizontally and Vertically polarized signals.
GENERAL SPECIFICATIONS
INPUT FREQUENCY 10.7-12.75GHz
L.O.FREQUENCY 9.75/10.6GHz±1MHz
STABILITY ±1.0MHz
L.O.PHASE NOISE -55dBc/Hz@1KHz
-80dBc/Hz@10KHz
-100dBc/Hz@100KHz
OUT PUT FREQUENCY 950-2150MHz
CONVERSION GAIN 65dB (TYP)
GAIN FLATNESS ±0.5dB/6MHz; ±2.5dB/IN BAND
NOISE FIGURE 0.2dB (TYP)
DC SUPPLY VOLTAGE 11-14.5V (V),15.5-22V (H)
SUPPLY CURRENT 95mA (MAX)
OUT PUT CONNECTER 75Ω, F-type female
RELATIVE HUMIDITY 0%-95%
