Introduction:

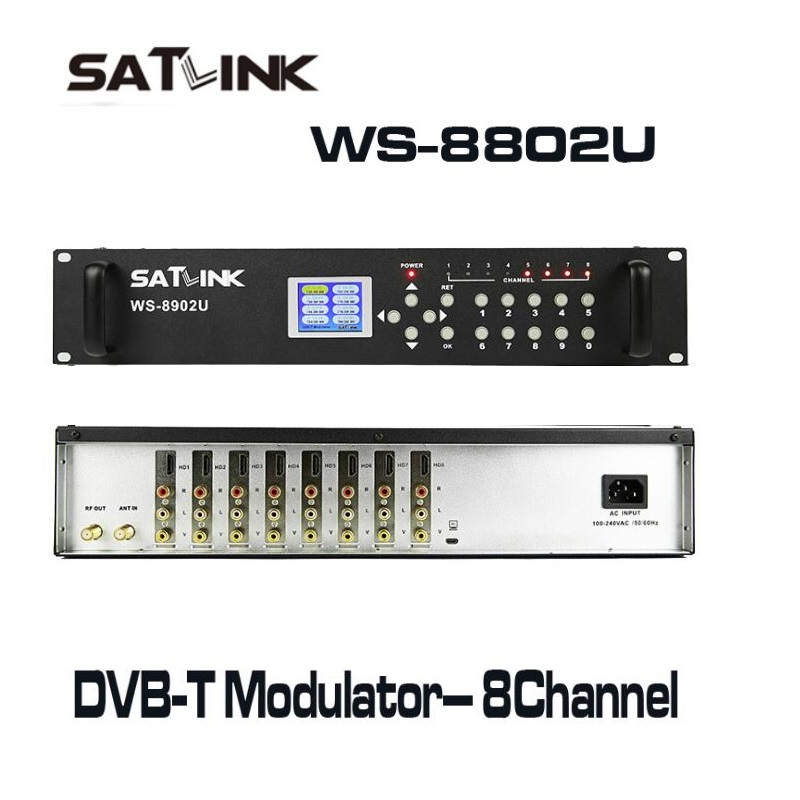

The machine is a composite video input standard definition DVB-T 8 route modulator which provides COFDM RF signal in range of 50-860MHz.
It consists of A/D, Coding, Modulation, Frequency conversion which provides bandwidth of 6/7/8MHz to select.
It is designed to achieve CVBS and input, and it can also supports standard H.264 encoding.
It is an excellent choice to transport video/audio signals from TV satellite receivers, surveillance camera or video/media players to a LCD TV or set-top box.
It can be used in series with other modulator so the number of channels in the coaxial cable no the SMATV system can be increased as desired.

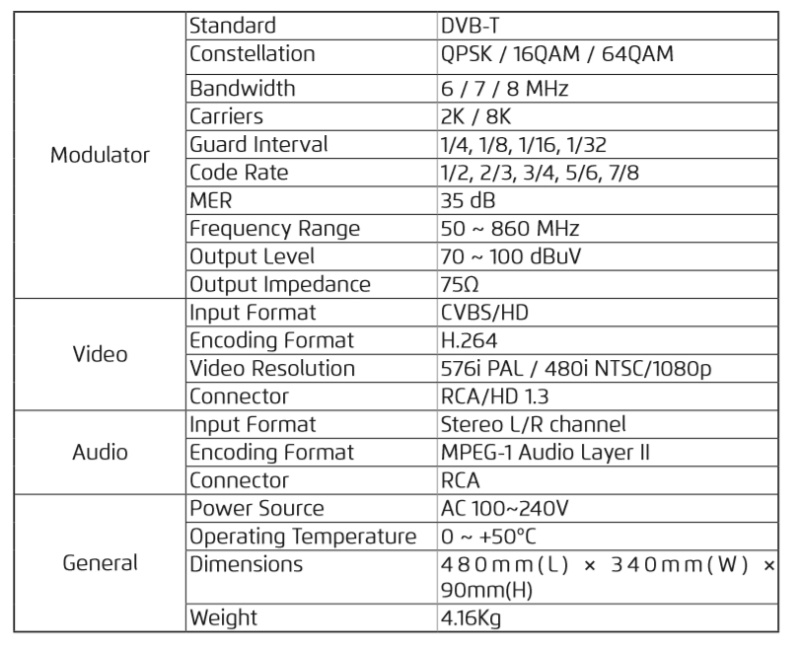

Features:
• High level of integration, high-performance, Full-featured, integrated design
• 8 route input modulator that converts AV source to a DVB-T channel
• Standard COFDM modulation and H.264 encoding
• Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
• Bandwidth: 6/7/8MHz
• Frequency range: 50~860MHz
• Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV
• 2.4-inch color LCD display
• Small size and light weight
• Carriers 2K and 8K
• User friendly setup and control
