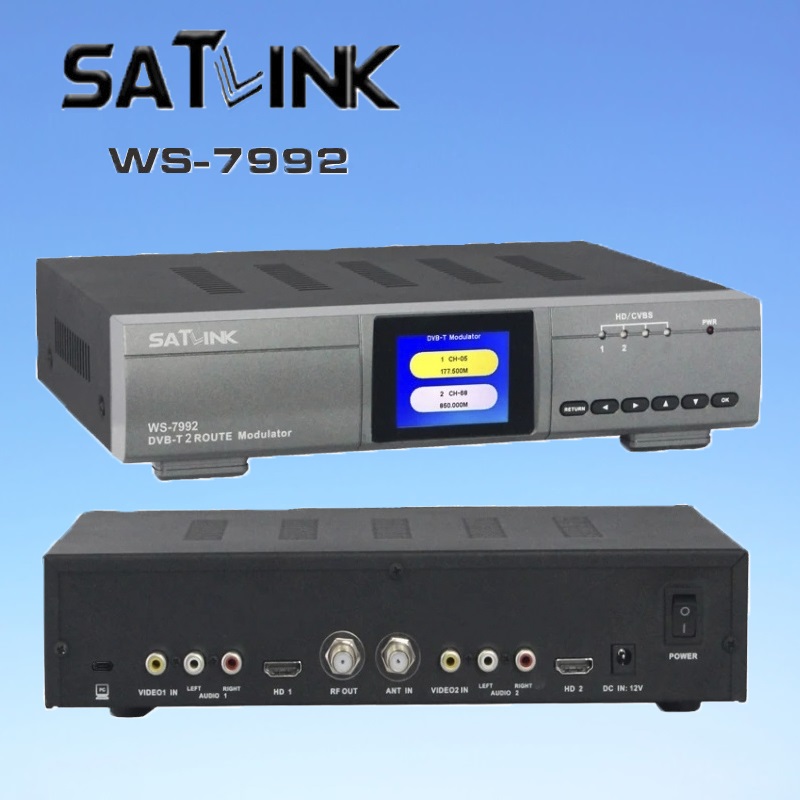

Satlink ST-7992 DVB-T modulator COFDM modulation H.264

Satlink ST-7992 DVB-T modulator COFDM modulation H.264调制器

1. High level of integration, high-performance, Full-featured, integrated design

2. 2 route input modulator that converts analogue A/V source to a DVB-T channel

3. Standard COFDM modulation and H.264 encoding

4. Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p

5. Bandwidth: 6/7/8MHz

6. Frequency range: 50~860MHz

7. Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV

8. 2.4-inch color LCD display

9. Small size and light weight

10. Carriers 2K and 8K

11. User friendly setup and control

12. Compact and wall mountable

• 2 HD /2 AV  inputs  modulator that converts  source to a DVB-T over RF channel

• Standard COFDM modulation and H.264 encoding

• Support High-Bandwidth Digital Content Protection /HDCP

• Bandwidth: 6/7/8MHz

• Frequency range: 50~860MHz

• Continuously adjustable RF signal output level range 70dBuV from 100dBuV,step 1dBuV

• 2.4-inch color LCD display

• Small size and light weight

• Carriers 2K and 8K

• User friendly setup and control

1 x SATLINK WS-7992

1 x Power Supply

1 x User Manual
