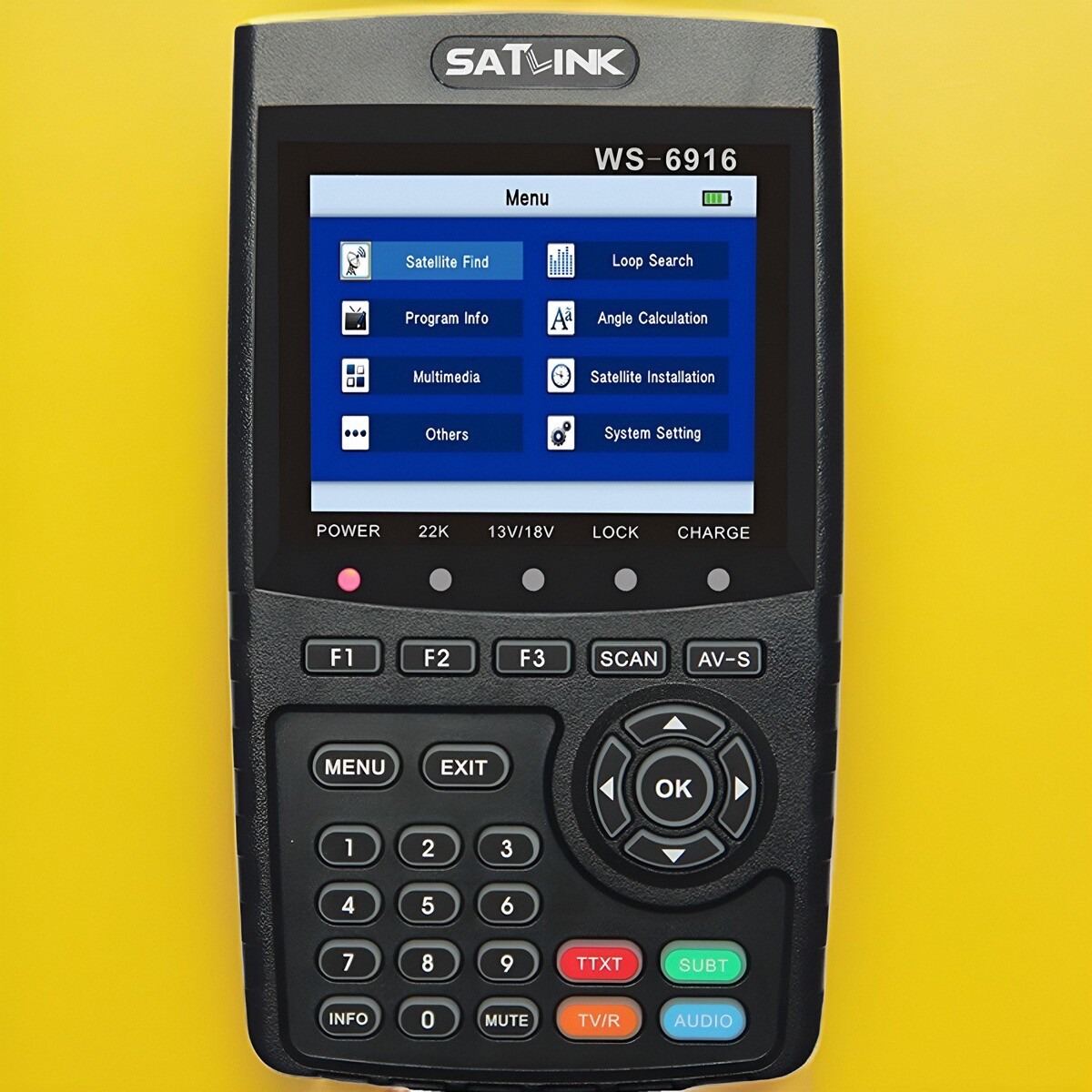

Satlink WS-6916 WS 6916 DVB-S2/S sat finder satellite Receiver for MPEG-2/MPEG-4 H.265 satfinder Satellite signal finder Meter

DVB-S/S2 and MPEG-2/4 H.265(8 Bit) compliant handheld satellite finder.With it’s compact size,light weight,intuitive user’s interface,long battery operational
hours and rich feature set,the finder provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.

Interface:

3.5 Inch High Definition TFT LCD Screen (720*576,720*480)

MPEG-2/H.265(8 Bit) Hardware Decoding

About 4 hours Battery Operation Time

Auto angle calculation of AZ.EL

Diseqc 1.1/1.1,1.2 usala and 22Khz Tone

Signal lock with panel led and sound indicators

Signal strength BER MER,S/N,Power Measurmeet

Auto,Blind,Manual and NIT Scan mode

LNB Short Protection

Software Upgrade and File Transfer via USB

Specifications

Transmission standards:DVB-S/S2, MPEG-2,MPEG-4, H.265(8 Bit)

Connector Type:F Type

Input Frequency:950 to 2150 MHz

Signal Input Level:- 65 to -25 dBm

LNB Supply:13V/18V, IMax 400mA

Band Switch Control:22KHz

Demodulation Type:QPSK,8PSK,16APSK,32APSK

Symbol Rate:2<Rs<45Mband(SCPC/MCPC)

LCD Type:TFT Transmissive

Number of Dots:320 x 240 (RGB)

Active area (WxH):70.02x52.58 mm2

AV output/input interface:

Connector Typ:3.5 mm jack

Video Output:CVBS

Audio Output:Stereo Audio L/R output

DATA SERVICE PORT

Connector:USB

Data Protocol:USB2.0 interface

File Management System:NTFS,FAT32,FAT16

File Format:wma,mp3,mp4,avi,jpg,jpeg,bmp,img

Package:

6916 Digital Satellite Meter

AV cable

Power Adaptor

Car Charger Cable
