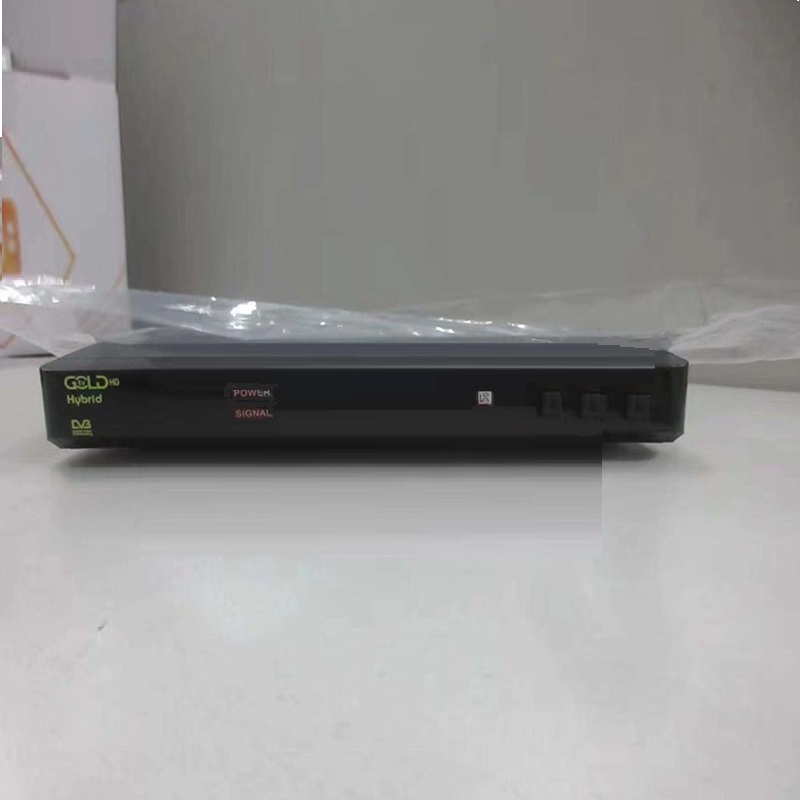

GOLD HEVC TV upper box DVB S2 forever twin tuner receives satellite internal wifi SKS+IKS

Chipset GX8028-NH

CPU 32-bit CK610M, Up to 600MHz

GPU multi-standard video decoder

Flash 128M Byte

SDRAM 2Gbit DDR3

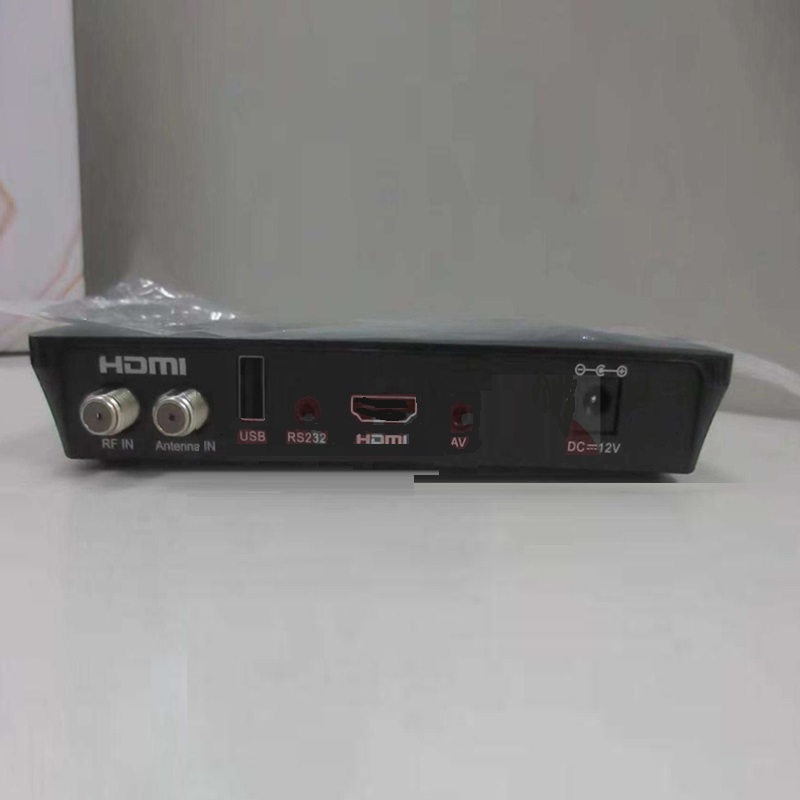

Interfaces

LNB 2*DVB-S2 CAN Tuner In

1 earphone RS232 connector Maximum 115200bps;Support SW Update,Also for Debug

1 earphone AV connector left /right audio channel , compositive video

1 HDMI HD output connector

HDMI output with upscale supporting up to 480p&480i,576p & 576i,

720p&1080i50Hz&1080P50Hz;HDMI 1.4 supports HDCP 1.2 and DDC

1 USB 2.0 Support USB WIFI/3G device

1 DC power input connector 12V 1.5A Standard DC Connector

General

Features

Operation System linux

Power consumption Working power consumption ：Less than 18W;

Storage

USB2.0,High-speed and Full-speed devices supported, PVR is

supported

supported all kind of storage ,recording,playing and connecting all

kind of USB equipment.

video

Video Full Resolution:1920 × 1080P 1920 × 1080i and 1280 × 720p

for HD video,720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p

for SD video

Standard: HEVC/H.265,ISO/IEC 14496-10,ISO/IEC 14496-2,ISO/IEC

13818-2,ISO/IEC 11172-2

H265 video,BP/MP/HP up to L4.1,H.264 video,SP/ASP up to

L5,MPEG-4 video,H.263 P3,AVS,AVS plus,MPEG-2

video,MP@HL,MPEG-1 video

Aspect Ratio: 4:3, 16:9 Pan & Scan, Letterbox

True full Color(32 bits)on screen display (OSD)

Five display planes: background, still image, video, SOSD and OSD

Audio

Standard: ISO/IEC 13818-3

Decoding: MPEG1 I/II, MP3,MPEG-4 AAC and AAC plus (HE-AACv1

and v2),DRA,Dolby Digital (AC-3),Dolby Digital Plus (DD+)

Sampling Frequency :32, 44.1, 48KHz,and MPEG-2 half sampling

rates of 16kHz,22.05kHz, 24kHz

Audio Output Impedance: Low

Output Mode: Single channel, Dual-channel, Stereo, Left, and

Picture Standard： JRPigGh,tB.MP,GIF,PNG

Storing memory:4000 tp , 8000 channels

network search, blind search, sat search and TP search

HARDWARE DVB Function

Supported programme lock,delete,move(group

favorite gromupo vaen)d,r peanraemneta,sl wloacpk supported

Supported transponder add ,delete,edit

Supported multi-language menue(English.

Franch.Russia.Greek.Italian.Arabic.Farsi,Ukrain,Swedish,Spanish,T

urkish,German etc)

PIP supproted

Easy functions such as Group Move/Recall History

7 days Electronic Program Guide (EPG)[can up to 14 days ],epg

from internet

Teletext output through VBI and OSD

Software(data,kernel and file system) upgrade through USB or

Ethernet

Multi-language DVB Subtitle output

Tuner &

Channel

DVB-S/ S2

DVB-S / DVB-S2 Satellite Compliant (MPEG-I/MPEG-II/ MPEG-IV/

H.263/H.264/H.265)

Input impedance 75Ω

input frequency 950~2150MHz

Symbol rate 2.0~45 MS/s

Tuner RDA5815M

Demodulation QPSK.8PSK,16APSK,32APSK

Device

Parameter

Power dissipation Max 18W

Input voltage ： DC 12V 1.5A

Working Temperature 0 ～ 40℃

Size 160*92*25mm
