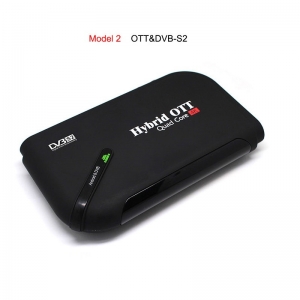

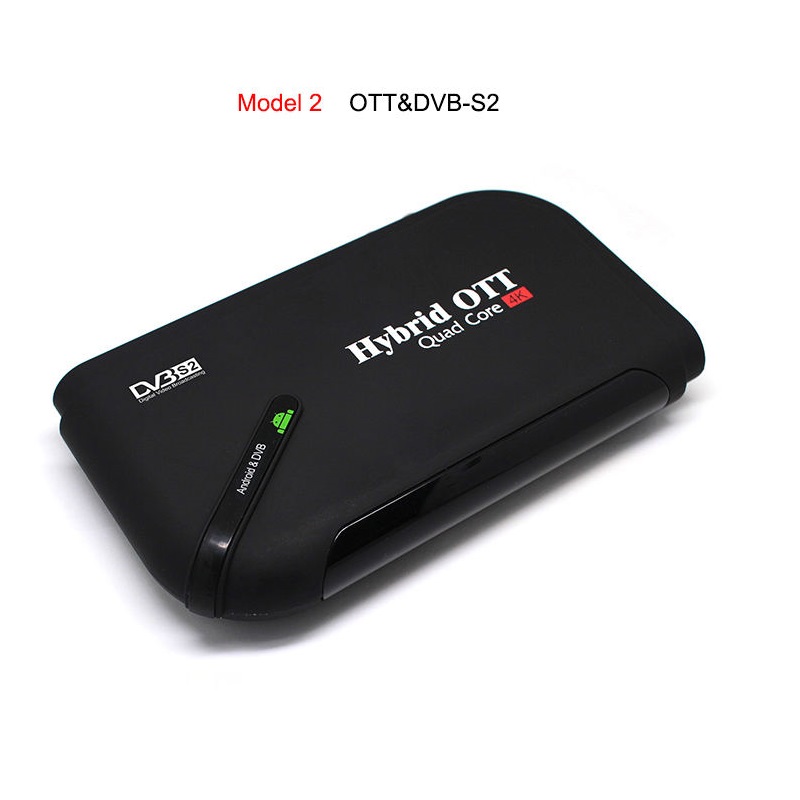

Hybrid-H1 Amlogic quad core RAM 1GB Android DVB S2 OTT TV box

hardware

CPUAmlogic S905D quad core Cortex-A53 up to 2.0GHz

GPUpenta core Mali-450 up to 750MHz

Memory DDRIII 1GB/2GB

Nand flash with 8GB (optional 4GB, 8GB, 16GB, 32GB)

Front panel infrared remote control

Red LED standby, green LED running

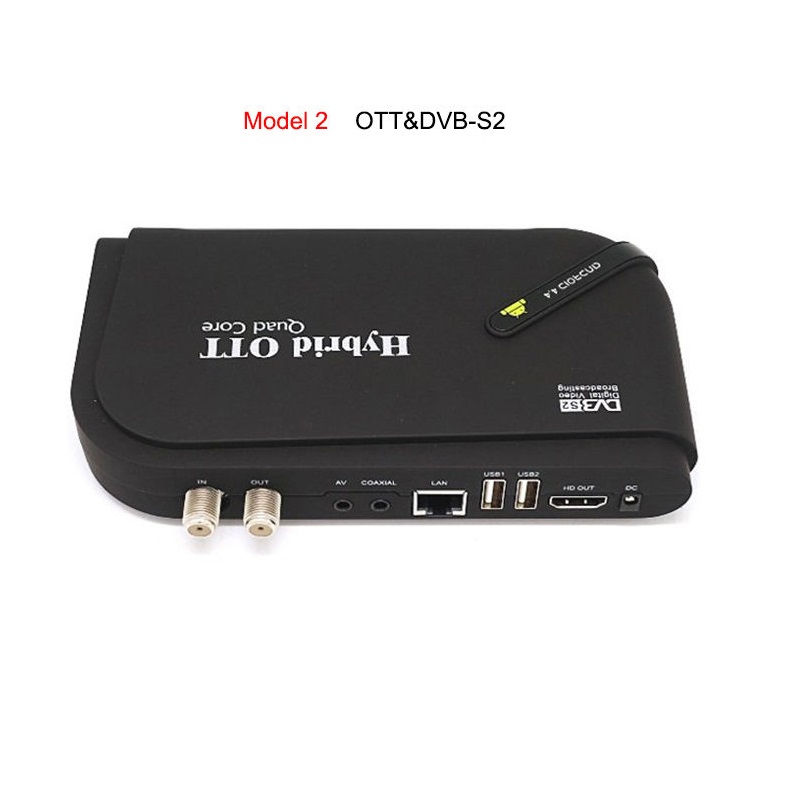

Rear panel tuner RF input connector IEC-162-2

Tuner RF loop through connector IEC-162-2

2 * USB 2.0 embedded two hosts

HD 2.0

Ethernet 10/100M, standard RJ-45

RCA CVBS aluminum AR connector x1

Support built-in 1 * SD card

Power input 5V/2A

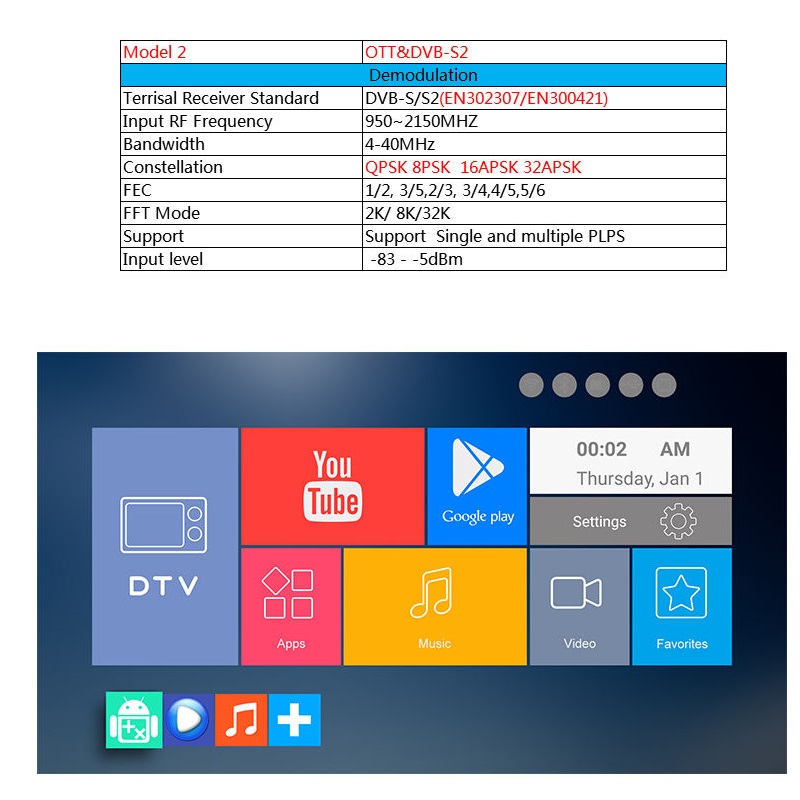

demodulate

Terrisal receiver standard Dvb-s/S2 (EN302307/EN300421)

Input RF frequency 950~2150 MHz

Bandwidth 4-40 MHz

Constellation QPSK 8PSK 16APSK 32APSK

FEC1/2，3/5，2/3，3/4，4/5，5/6

FFT mode 2K/8K/32K

Support for both single and multiple PLPs

Input level -83-5dBm

Operating System Android 7.1 Operating System

Video player supports 4K video encoding including H.265, H.264, VC-1, MPEG-1/2/4, RealVideo, DivX/Xvid, VP6, AVC, etc

The audio player supports audio formats such as MP3, FLAC, AAC, WMA, APE, AMR, MID, OGG, WAV, etc

Image JPEG, Papua New Guinea, BMP，GIF，JPG

24 languages including Chinese, English, German, Japanese, Korean, etc

KD supports KD 16.1

British Telecom supports BT 4.0

WiFi supports 802.11 b/g/n

3G encryption dongle supports most external 3G USB encryption dongles

Remote support for infrared remote control

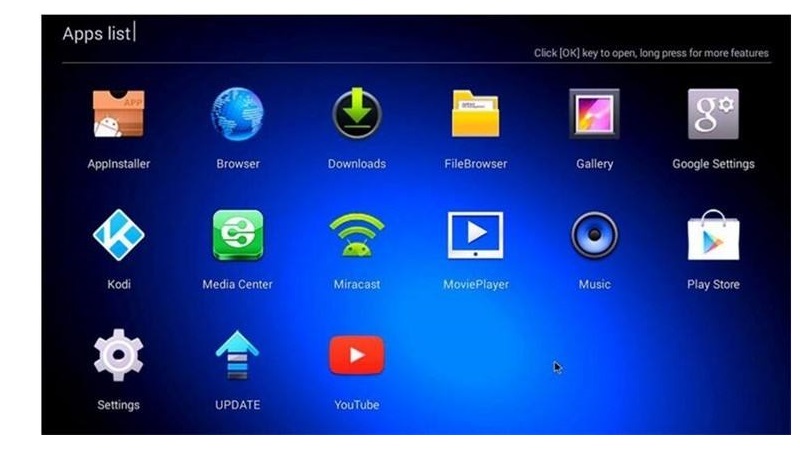

application

Browse all video websites online, supporting Netflix, Hulu, Flixster, YouTube, etc

Download applications for free from Android Market, Amazon App Store, and other platforms

Medium local media playback, supporting hard drives, USB drives, and SD cards

Online conversation supports Skype video calls MSN、 Facebook, Twitter, QQ, etc

Other supports WiFi hotspots and can be used as wireless routers

Supports DLNA AirPlay、 Google TV remote control, etc
