Hardware Specifications
CPUAmlogic S905X3 Quad core ARM Cortex-A53 CPU
GPUMail-G31 MP2 GPU
RAM2GB ( 4GB optional )
ROM16GB ( Other ROM capacity optional )
WiFiBuilt-in 2.4G/5G 2T2R WiFi with IEEE 802.11 b/g/n/ac
IRInfra Remote control
LAN Ethernet10/100M
LED IndicatorPower ON :blue; Standby :Red

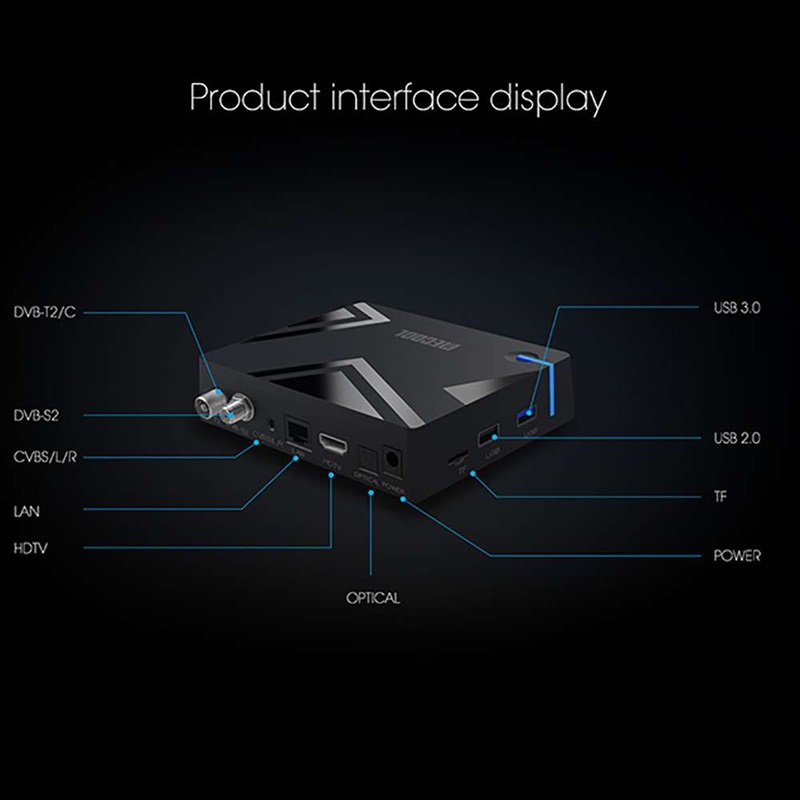

I/OHDTV 2.11* HDTV 2.1 Dynamic HDR 4Kx2K@60 max resolution output
1*USB3.0High speed USB 3.0,support U DISK and USB HDD
1*USB2.0High speed USB 2.0,support U DISK and USB HDD
1*AV CVBS&L/R output
1*OPTICALOPTICAL digital audio output
1*RJ4510/100M BaseT
1*MICRO SDSupport MICRO SD
1*DC INDC Adapter 5V/2A
DVB S2+T2 Support dual mode DVB T2+S2
Main Features
OSandroid 9.0
Video decorderhardware decoders
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- H.264 MVC up to 1080P@60fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps
Video encorderVideo/Picture Encoding
- Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate
- JPEG image encoding
- H.265/H.264 video encoding up to 1080P@60fps with low latency
HDRDynamic HDR10, HDR10, HLG and Technicolor HDR processing
Decoder formatHD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid,RealVideo8/9/10
Media formatSupports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Music formatSupports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Photo formatHD JPEG/BMP/GIF/PNG/TIFF
Network FunctionMiracast,,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.
LanguageChinese , English ,Germany ,Japanese, Korea etc. 24 languages
Accessories
Accessories1*Adapter
1*Gift Box
1*IR remote control
1*HDTV Cable
1*User Manual
Loading
Loadingmachine size 130X109X31.8Packaged size
machine weightPackaged weight
PCS/CTNCarton Size
