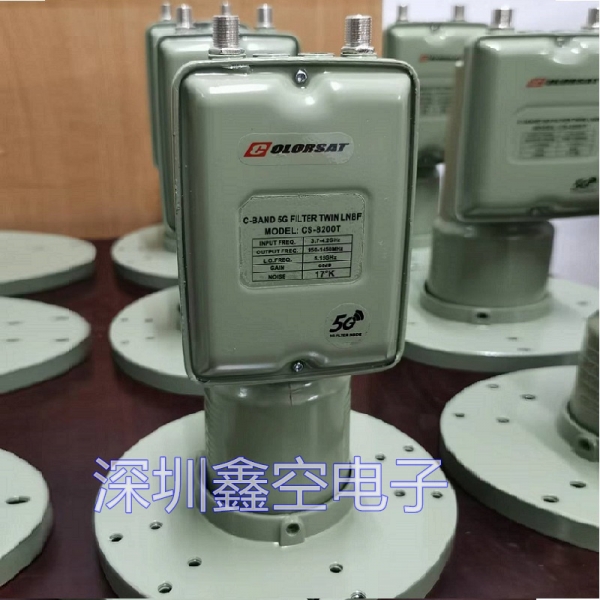

COLORSAT CS-8200 -BAND 5G FILTER TWIN LNBF
C-BAND 5G FILTER TWIN LNBF
MODEL:CS-8200T
INPUT FREQ.:3.7-4.20
OUTPUT FREC.:450-1454MN
LOPREQ.：5.15GHz
GAIN：6.5dB
NOISE：17°K
具有 3.5GHz 抑制项目的 C-BAND VH 高频头 | ||
| 具有 3.5GHz 抑制项目的 C 波段 LNBF 规范 | ||
| 1 | 最高噪音温度（水平和垂直） | 15°K |
| 2 | 典型增益 | 63分贝 |
| 3 | 最小增益（水平和垂直） | 55分贝 |
| 4 | 最大增益（水平和垂直） | 70分贝 |
| 5 | 增益平坦度（水平和垂直） | 10分贝 |
| 6 | 3.5GHz 时的抑制 | ＞50dB |
| 7 | 交叉极化最小值（水平和垂直） | 20分贝最小值 |
| 8 | Input Frequency range | 3.7GHz～4.2GHz |
| 9 | Output Frequency range | 950MHz～1450MHz |
| 10 | Local Oscillator Frequency | 5150MHz |
| 11 | Local Oscillator Stability in 25°C | 5150MHz（±1MHz) |
| 12 | Return Loss (from 950MHz to 1750MHz in 100MHz steps) | 10dB（TPY) |
| 13 | Phase Noise at 1kHz, 10kHz and 100kHz (if multipoint, for vertical and horizontal LO frequencies) | -65dBc/Hz@1KHz -95 dBc/Hz@10KHz -110 dBc/Hz@100KHz |
| 14 | Input VSWR | 2.5:1 |
| 15 | Output VSWR | 2.5:1 |
| 16 | Gain Flatness | ±1dB / 36MHz |
| 17 | Image Rejection | 40 dB |
| 18 | Current Consumption (for 13V and 18V) | 120MA(MAX) |
| 19 | Temperature Operation range | -30 ℃ ～ +70 ℃ |
| 20 | Temperature Storage range | -40 ℃ ～ +80 ℃ |
| 21 | Relative Humidity range | 0%～95% |
| 22 | Dimensions (mechanical drawing) | 208mm*86mm |
| 23 | Number of output connections | TWO |
| 24 | Type of output connections | "F" TYPE FEMALE |
| 25 | Impedance of output connections | 75 OHMS |
