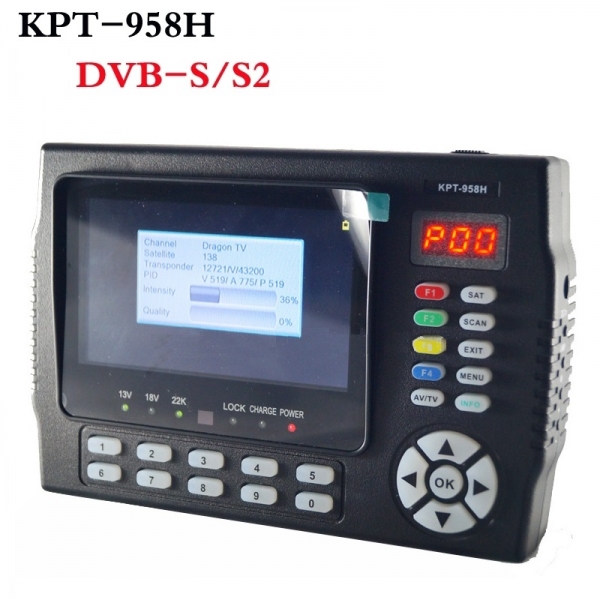

KPT-958H 4.3" HD Portable Combo(DVB-S/S2+T/T2+C ) Satellite finder & HD Monitor
①Combo Satellite TV Finder(DVB-S2/T2/C)
②HD input function.(HD Monitor)
③AV input function.(Monitor)
1.Combo Satellite finder
DVB-S/S2 < DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>
¤Frequency range:950MHz-2150MHz
¤LNB power & switch:13V18V/22K / signal lock indicator
¤Input impedance: 75Ώ (F). LNB short-circuit protection
¤DiSEqC:1.0, 1.1, 1.2, USALS Build-in signal locked alarm
¤Build-in satellite finder management
Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc
DVB-T/T2 : <DVB-T and DVB-T2 standard>
Frequency range: VHF-H 174-230MHz, UHF 470-860MHz
Demodulation:QPSK, 16QAM, 64QAM,256QAM
Bandwidth:6、7、8MHz
DVB-C: <DVB-C standard>
Frequency range: 115~858MHz ；
Symbol Rate(Kbps)：Modify according to local country information
Demodulation:16QAM, 32QAM, 64QAM,128QAM,256QAM
2. HD Input: (Max:1080P)
HD signal display support : 480 576 720 1080
3. AV Input:(on AV state;TV state is AV output)
¤Support Video & Audio &DC12V power test
¤AV Input (Video&Audio Input Monitor)
¤Built-in speaker, Remote control function.
¤With DC12V power output to CCTV
¤Build-in Lithium battery find satellite around 3 hours
¤Battery play time(AV input): about 6 hours
¤On satellite finder state ，AV port outputs video and audio synchronously
¤with HD & AV input function.
¤4.3"IPS high-resolution digital display LCD( LED Back Light)
¤Dots pixels:IPS 800*480(1152000Pixes)
¤Color system: PALNTSC
¤Lithium battery:DC 11.1V 2200mAh(built-in)
¤Input voltage:DC13.5V 0.8A
Product Size 180*122*48mm
Net Weight 517g (including battery pack)
