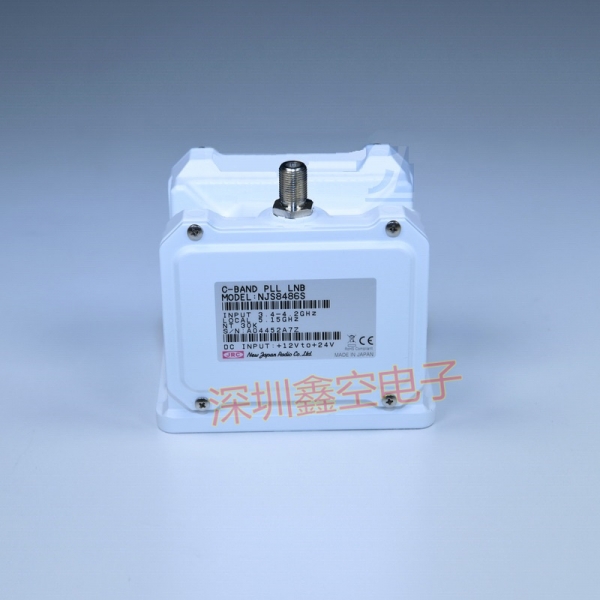

JRC NJS-8486 C-BAND PLL LNB

JRC NJS-8486 C-BAND PLL LNB

Imported from JRC Radio Company in Japan

NJS-8486 frequency range: 3.40-4.20GHz, local oscillator: 5.15GHz

NJS-8486 frequency range: 3.40-4.20GHz, local oscillator: 5.15GHz

NJS-8487 frequency range: 3.625-4.20GHz, local oscillator: 5.15GHz

NJS-8488 frequency range: 4.50-4.80GHz, local oscillator: 5.75GHz

The classification of local oscillator frequency stability is as follows:

The suffix U of the model is 1ppm, which is equivalent to 5KHz

The suffix S of the model is 3ppm, which is equivalent to 15KHz

The suffix H of the model is 10ppm, which is equivalent to 50KHz

L-band output signal interface: F-type and N-type, 75 ohms and 50 ohms

Rectangular waveguide port CPR-229, gain: 59-66dB, power supply voltage: 12-24V, power consumption current: 350mA, weight: 800g
