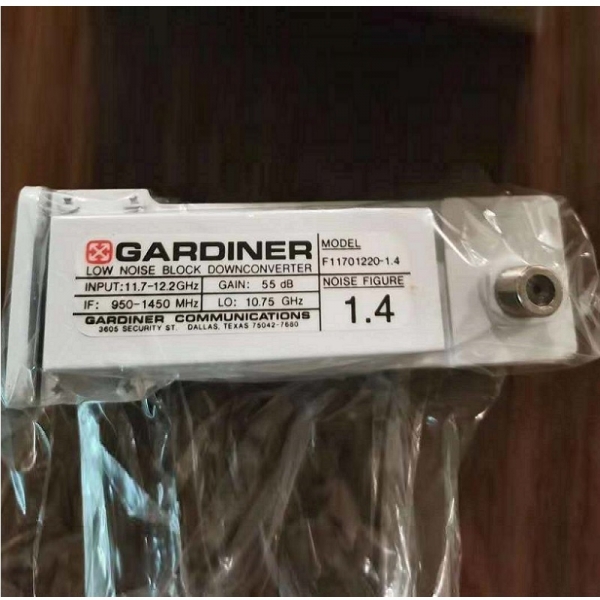

GARDINER LOW NOISE BLOCK DOWNCONVERTER
Applicable to satellite TV reception signals used by provincial and municipal radio and television departments, military forces, certificate companies, etc
Widely used in radio and television stations, meteorology, hotels, hotels, schools, and research institutions, the satellite high-frequency head has stable and reliable quality
Input frequency 11.70-12.20GHz
Noise coefficient 1.4 ° K
Input RF level -100 to -55dBm
Image carrier suppression>45dBc
Cross polarization isolation 35dB low
输出频率 950-1750MHz
输出阻抗 75 欧姆
输出 VSWR <2.0:1 最大
增益 @23℃ 65dB 典型值
增益平整度 ±3dB
增益波动 1.0dB p-p 最大
三次截取点（ IP3 ） +10dBm 最小
1 dB 压缩点（ P1 dB ） +5dBm
LO 频率 10.75GHz
频率稳定度 （ -40 至 +55℃ ） ±1.5MHz
输入端 LO 辐射 -45dBm 最大
相位噪声 @1kHZ <-75dBc/Hz 最大
@10kHZ <-80dBc/Hz 最大
@100kHZ <-100dBc/Hz 最大
直流电压（由 IF 电缆输入） 11-21V
直流电流 160mA 最大
