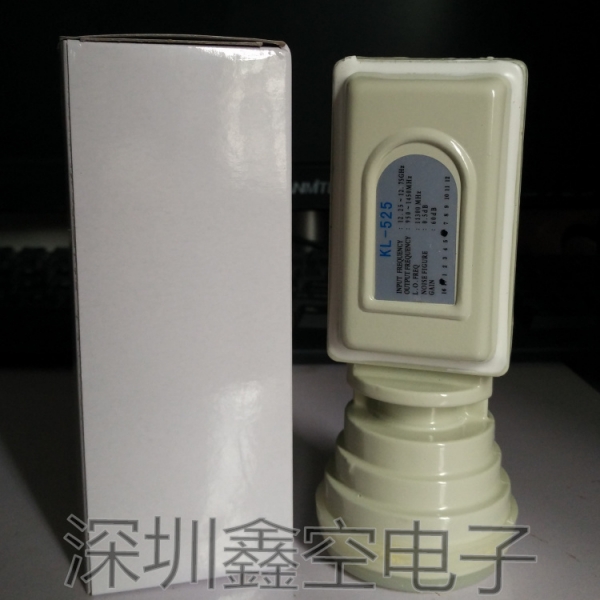

KU BAND, No.5 Asia Pacific, No.6 Asia Pacific, 11300 Main Town, Baichang KL-525LNB

KU BAND, No.5 Asia Pacific, No.6 Asia Pacific, 11300 Main Town, Baichang KL-525LNB

KL525 (new model) adopts the latest components to design the circuit more reasonably, improving overall performance

Improved. The cover plate is glued with high-strength sealant, which has better waterproof performance

Technical specifications of Ku Band satellite frequency reducer KL525 (new):

Features:

Input frequency: 12.25-12.75GHz

Output frequency: 950-1450MHz

Local oscillator frequency: 11300MHz

Local oscillator accuracy: ± 1 MHz

Noise coefficient: 0.5dB

Gain: 60dB

DC power supply: 10-20vdc/160mA

Output standing wave ratio coefficient: 2:1

Joint type: F-type

Working temperature: -40-+60 ℃

Vertical polarization voltage: 11-14.5V

Horizontal pole voltage: 16-20V
