Baichang COHSD-1252 Anti 5G Dual Output LNB

Baichang COHS lnb D-1250 Anti 5G Interference

LNBF 17K

Working bandwidth: 3.7-4.2GHz

Local oscillator frequency: L.B.5150. H. B.5750

Local oscillator frequency stability: ± 2MHz

Input bandwidth: L.B.950-1450MHz

H. B.1550-2050MHz

Variable frequency gain: 60dB

Gain flatness: ± 1dB/36MHz

Output voltage standing wave ratio: 2.5:1

Parasitic frequency repulsion: 60dBm (Max)

Noise index: 17K

Supply voltage: 13-24V/150mA (Max)

Guided wave tube: WC-229

Switching voltage: None

Mirror rejection: 45dB (Min)

Output level:+5dBm

Output structure:

Input structure: Circular waveguide tube with disc

Baichang COHSD-1252 Anti 5G Interference Big Pot High Frequency Head Dual Local Oscillator Two Output 5G C-Head 5150-5750 Frequency Reducer

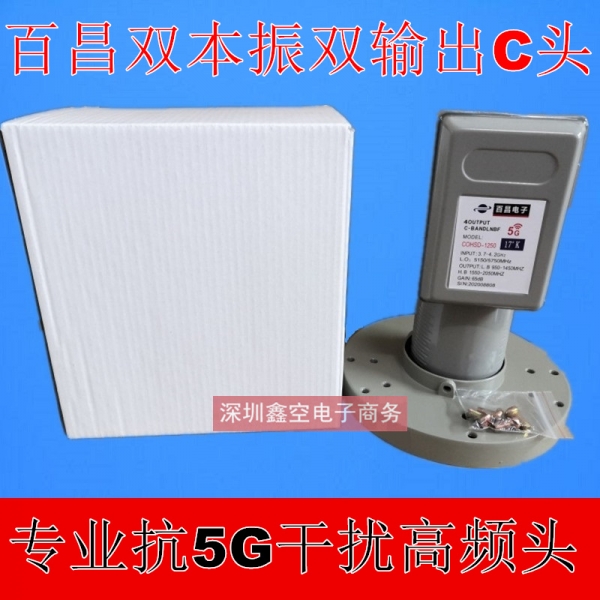

Physical image: (The new model arrives in a white packaging box)
