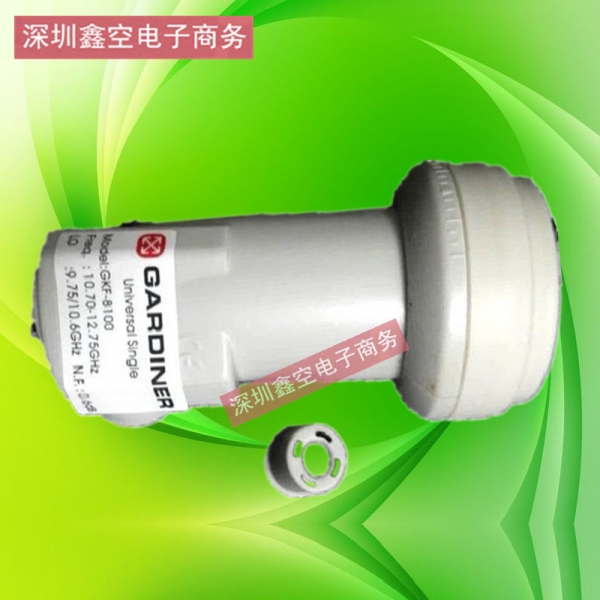

GARDINER GKF-6100 Universal single LNB

GARDINER GKF-6100 Universal single LNB

Product Introduction:

The GKF-6100 KU band bipolar single output feed source integration of Jiadun satellite high-frequency head has the characteristics of high sensitivity, high gain, low noise figure, and low phase noise, which is completely suitable for satellite digital TV reception requirements;

GKF-6100 offset fed dual local oscillator high-frequency head, suitable for Ku offset fed antennas;

GKF-6100 adopts high-quality plastic shell with electrostatic spraying, elegant and beautiful;

It has been thoroughly tested and certified by national professional organizations and has been widely used in the front-end systems of cable television and household satellite receiving stations.

Technical Indicators:

Frequency range 12.25-12.75GHz

Output frequency 950~1450MHz

Gain 60Db (type)

Gain flatness ± 0.5dB/27MHz

Local oscillator frequency 11.3GHz

Local oscillator stability ± 500KHz

Local oscillator phase noise -60dBc/Hz (@ 1KHz); -80dBc/ Hz(@10KHz)； -100dBc/Hz (@100KHz)

Noise factor 0.6dB

Insertion isolation degree 27Db (min.)

Parasitic output -60dBc (max)

Output voltage standing wave ratio 2.0:1 (max)

1dB gain compression point output power 0.0dBm (min.)

Image suppression 50dB

Polarization method: Select 11.5V~14.2V vertical polarization; 15.8V~19.0V horizontal polarization (when the zero scale is perpendicular to the ground)

Power supply 10~24V PC, 180mA (max)

Working temperature -30~60 ℃

The GARDINER brand series sold by our company includes KU band, GKF-4100, GKF-8100, GKF-6100 and other models. Please call us for more information. All models come with a one-year warranty, except for lightning strikes and human damage!
