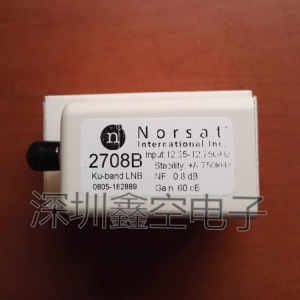

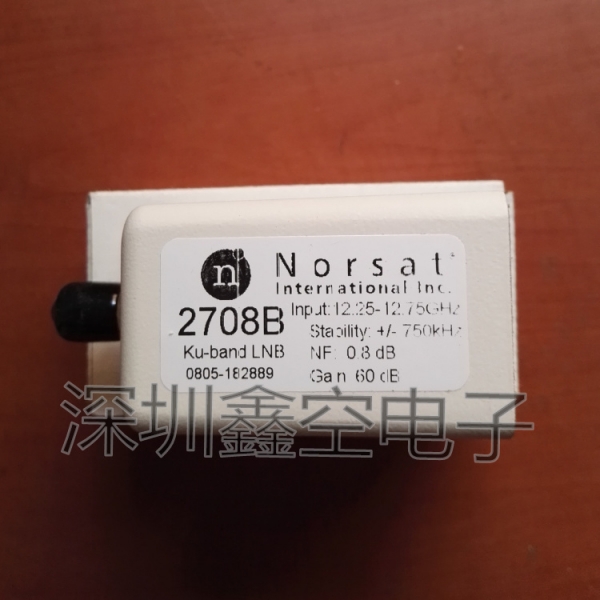

Norsat 2708HB LNB, KU band frequency reducer
Norsat was founded in Canada in 1977 and its products entered the Chinese market in 1997. It is a leader in intelligent satellite solutions. The C-band and Ku band series high-frequency heads produced by Norsat company are developing towards high-frequency, multi band, multi satellite acceptance, and small-sized directions. Its characteristics of low power consumption, phase-locked loop local oscillator, high gain, anti-interference, and being made of materials resistant to harsh environments have also become the measurement targets for high-quality satellite high-frequency heads. All Norsat's high-frequency converters can operate in environments ranging from -400C to 750C, with relative humidity ranging from 0 to 100%, and rainfall levels of 60mm/hour.
All products pass the complete testing of US military quality control standards at the time of leaving the factory, with an average time between failures greater than 300000 hours.
name | model |
Input frequency（GHz） | Local oscillator frequency （GHz） | output frequency （MHz） | Noise temperature（dB） | phase noise | Frequency stability | gain |
KU PLL： | ||||||||
KU PLL LNB | 1506HB | 12.25~12.75 | 11.3 | 950~1450 | 0.6 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1508HB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1508HA | 12.25~12.75 | 10.75 | 950~1450 | 0.8 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1508HC | 12.25~12.75 | 10.00 | 950~1450 | 0.8 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1108HB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±10KHz | 60dB |
KU PLL LNB | 1208HB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±25KHz | 60dB |
KU PLL LNB | 10508LB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±50KHz | 60dB |
KU PLL LNB | 10750LB | 12.25~12.75 | 11.3 | 950~1450 | 1.0 | -65dBc/Hz | ±75KHz | 60dB |
KU波段： | ||||||||
KU LNB | 4208B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±150KHz | 60dB |
KU LNB | 4208B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±250KHz | 60dB |
KU LNB | 4508B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±500KHz | 60dB |
KU LNB | 2708B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±750KHz | 60dB |
