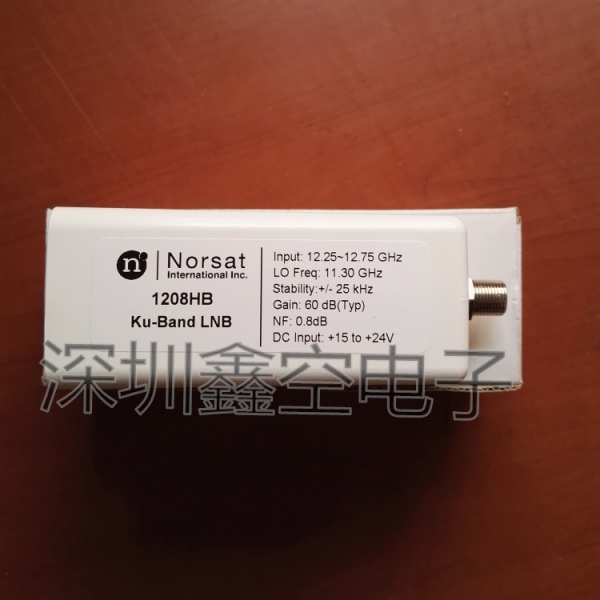

Norsat 1208HBLnb, KU band frequency reducer
Norsat was founded in Canada in 1977 and its products entered the Chinese market in 1997. It is a leader in intelligent satellite solutions.
The C-band and Ku band series high-frequency heads manufactured by Norsat company are developing towards high-frequency, multi band, multi satellite reception, and small-sized directions. Its characteristics of low power consumption, phase-locked loop local oscillator, high gain, anti-interference, and being made of materials resistant to harsh environments have also become a measure of high-quality satellite high-frequency heads. All Norsat's high-frequency converters can operate in environments ranging from -400C to 750C, with relative humidity ranging from 0 to 100%, and rainfall levels of 60mm/hour.
All products undergo complete testing according to US military quality control standards at the factory, with an average time between failures exceeding 300000 hours.
名称 | 型号 | 输入频率（GHz） | 本振频率（GHz） | 输出频率（MHz） | 噪声温度（dB） | 相位噪声 | 频率稳定度 | 增益 |
KU波段PLL锁相环： | ||||||||
KU PLL LNB | 1506HB | 12.25~12.75 | 11.3 | 950~1450 | 0.6 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1508HB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1508HA | 12.25~12.75 | 10.75 | 950~1450 | 0.8 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1508HC | 12.25~12.75 | 10.00 | 950~1450 | 0.8 | -65dBc/Hz | ±5KHz | 60dB |
KU PLL LNB | 1108HB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±10KHz | 60dB |
KU PLL LNB | 1208HB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±25KHz | 60dB |
KU PLL LNB | 10508LB | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±50KHz | 60dB |
KU PLL LNB | 10750LB | 12.25~12.75 | 11.3 | 950~1450 | 1.0 | -65dBc/Hz | ±75KHz | 60dB |
KU波段： | ||||||||
KU LNB | 4208B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±150KHz | 60dB |
KU LNB | 4208B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±250KHz | 60dB |
KU LNB | 4508B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±500KHz | 60dB |
KU LNB | 2708B | 12.25~12.75 | 11.3 | 950~1450 | 0.8 | -65dBc/Hz | ±750KHz | 60dB |
