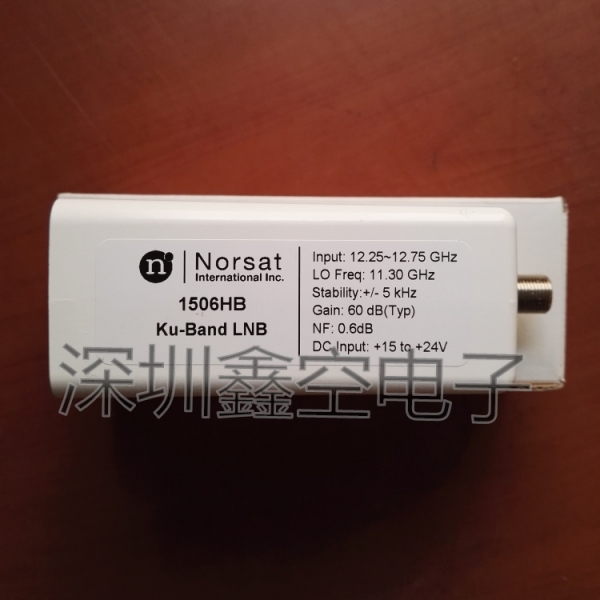

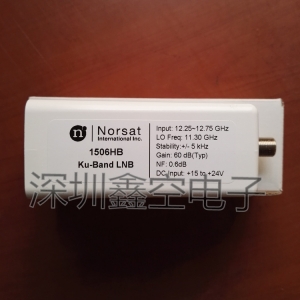

Norsat-1506HB KU-Band LNB

Product features:

The C-band and Ku band series high-frequency heads produced by Canadian company Norsat are developing towards high-frequency, multi band, multi reception, and small-scale directions.

The Norsat-1506HB high-frequency head has become a measure of high-quality high-frequency heads due to its characteristics of low power consumption, phase-locked loop local oscillator, high gain, anti-interference, anti mosaic, and being made of materials that are resistant to harsh environments.

The Norsat1506HB high-frequency head can operate in environments ranging from -400C to+750C, with relative humidity between 0-100% and rainfall levels of 60mm/hour.

The Norsat-1506HB high-frequency head has passed the complete testing of the US military quality control standards at the factory, with a uniform time between failures greater than 300000 hours.

Technical indicators

Input frequency: 12.25GHz~12.75GHz

Local oscillator frequency: 11.3GHz

Output frequency: 0.95GHz~1.45GHz

Nominal gain: 60dB

Local oscillator stability: ± 5KHz

NF coefficient: 0.6dB

Operation voltage: 15-24V

Technical indicators:

Frequency range 10.7-12.75GHz

Output frequency 950~2150MHz

Gain 60Db (type)

Gain flatness ± 0.5dB/27MHz

Local oscillator frequency 9.75/10.6GHz

Local oscillator stability ± 500KHz

Local oscillator phase noise -60dBc/Hz (@ 1KHz)- 80dBc/Hz (@ 10KHz)- 100dBc/Hz (@ 100KHz)

Noise coefficient 0.6dB

Interlude isolation degree 27Db (min.)

Parasitic output -60dBc (maximum.)

Output voltage standing wave ratio 2.0:1 (maximum.)

1dB gain shrink point output power 0.0dBm (min.)

Mirror suppression 50dB

Polarization mode selection: 11.5V~14.2V direct polarization; 15.8V~19.0V horizontal polarization (when the zero scale is straight to the ground)

Power supply 10-24V PC, 180mA (maximum.)

Operating temperature -30~60 ℃
