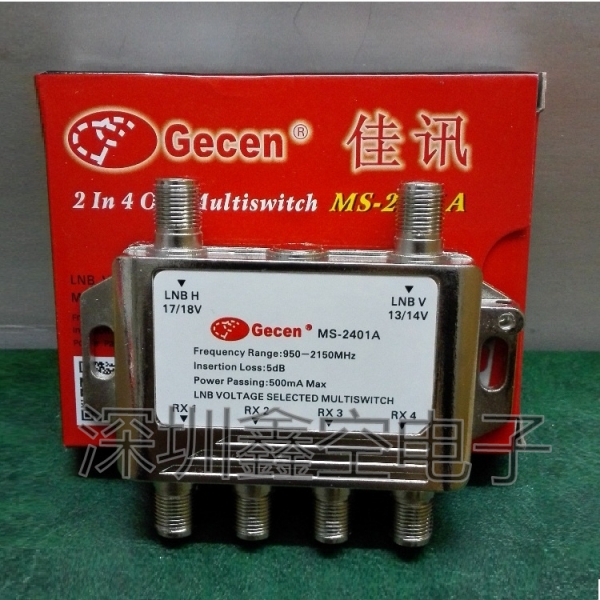

Gecen MS-2401A 2 In 4 Out DiSEqC 4x2 Switch Satellite Signal Multiswitch LNB Voltage Selected 950-2150MHz for TV Receiver

Gecen  MS-2401A 2 In 4 Out DiSEqC 4x2 Switch Satellite Signal Multiswitch LNB Voltage Selected 950-2150MHz for TV Receiver

Description:

1. Zinc alloy crust

2. High isolation

3. Low insertion loss

4. Switch voltage: 18V

5.Power suppied from Receiver

Specification:

1) LNB frequency range: 950 to 2150MHz

2) Insertion loss: 5dB

3) Return loss: 10dB

4) Isolation: 26dB

5) LNB V voltage: 13V/14V

6) LNB H voltage: 17V/18V

7) DC current consumption: 30mA

8) Max. DC current to LNB: 500mA

9) Input and output: 75Ω, F type connector

10) 2 SAT signals input is supplied 4 users simultaneously
