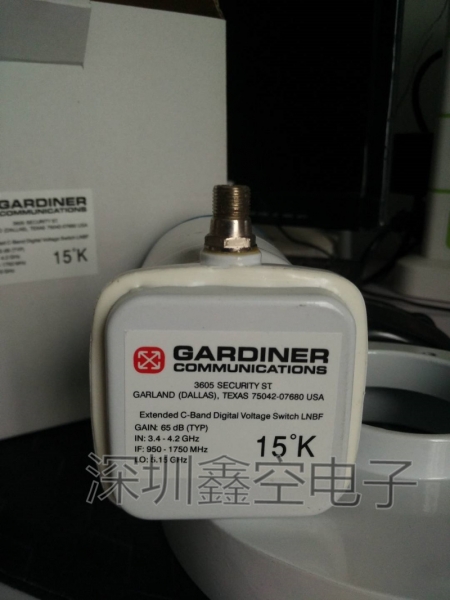

GARDINER 3605 Extended C-Band Digital Voltage Switch LNBF
The Jiadun brand satellite high-frequency head is well-known in the broadcasting and television industry, and its stable and reliable quality is loved by broadcasting and television professionals and experienced TV enthusiasts. Its local oscillator stability is high, with a gain of up to 65dB of high-frequency head
It is a cutting-edge household model
Input frequency |
3.4 to 4.2GHz | Polarization isolation |
20dB(min.) |
Local oscillator frequency |
5150MHz(±500KHz@25?C) | Mirror frequency suppression |
45dB(min.) |
Local oscillator stability |
±1.5 MHz(-40 to+70?C) | phase noise |
|
output frequency |
950 to 1750MHz | Power supply voltage |
11.5 to 14.0v 16.0 to 19.0v |
Noise coefficient |
15K | Power supply voltage |
|
gain |
65dB | working temperature |
-40 to +70?C |
Input standing wave |
2.5:1(max.) | Storage temperature |
-40 to +80?C |
output vswr |
2.0:1(max.) | Relative temperature |
0% to 95% |
Output Connection |
F-Female connector | External dimensions |
|
Output impedance |
75Ω | weight |
680g |
